Linear, exponential, and logarithmic functions
Limits
Definition of the derivative
Rules of differentiation
The chain rule and product rules
Lines
- We typically use the slope-intercept form of the line: \(y = a + bx\), where \(a\) is the intercept, and \(b\) is the slope (rise over run).
- For example: \(y = 1.5 + 0.5x\)
- \(1.5\) is the value of the function when either \(x = 0\) or \(b = 0\).
- In practice, \(b\) is almost never zero.

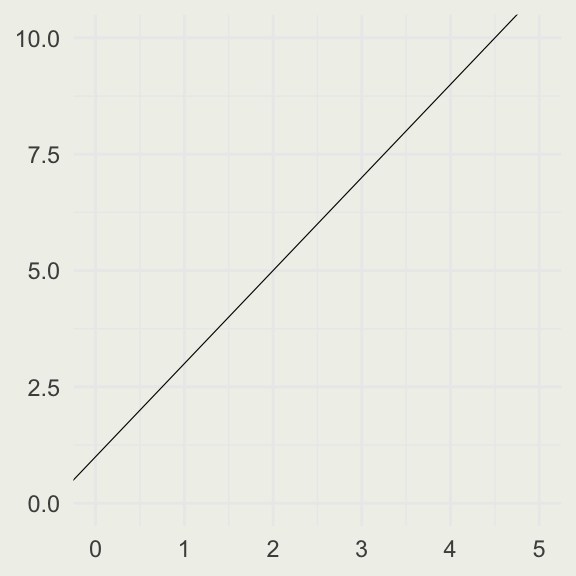

A graph of a line with the equation \(y = 1 + 2x\).

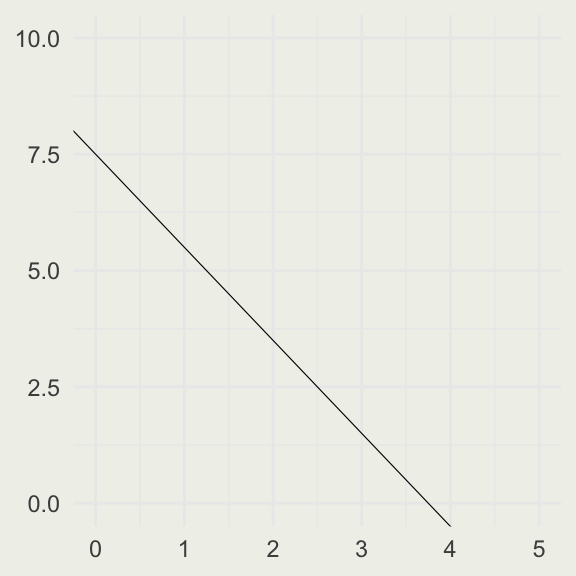

A graph of a line with the equation \(y = 7.5 - 2x\).

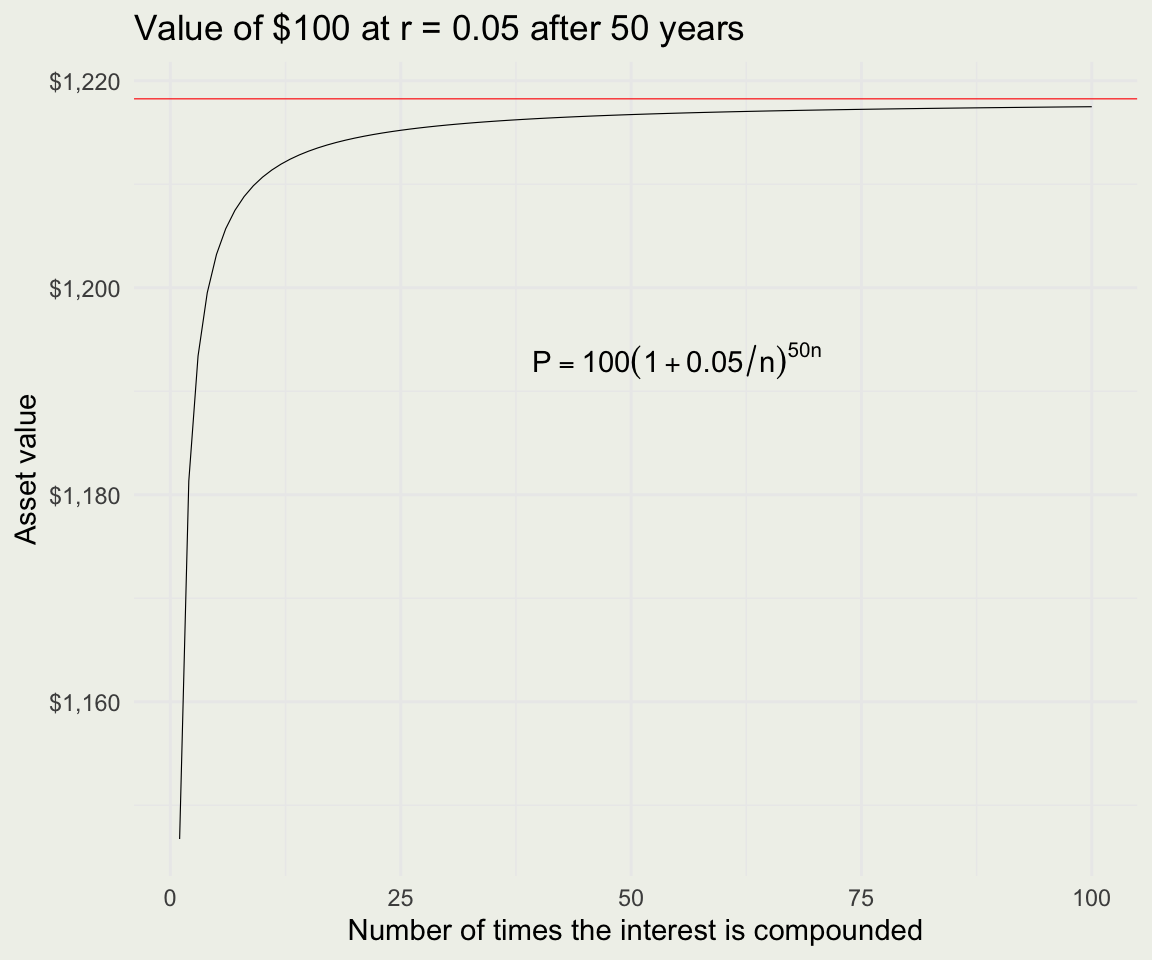

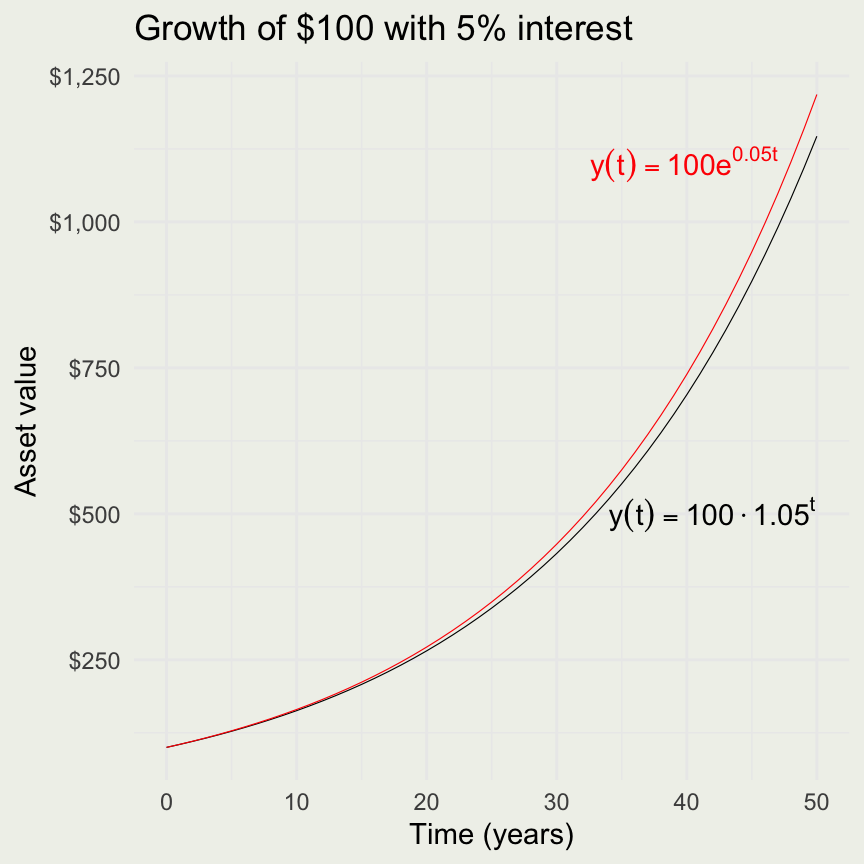

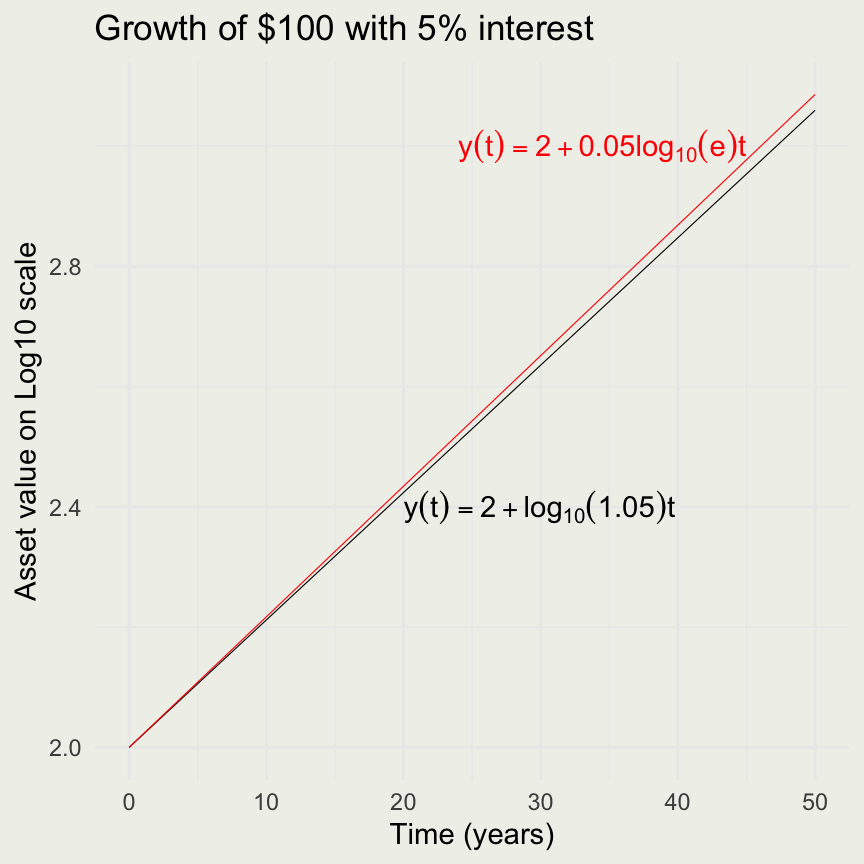

Example: Compound Interest
rate <- 0.05 # interest rate r
P <- 100 # pricical P
n_comp <- 1:100 # number of compoundings n
Pn <- function(n, A, r, t) A * (1 + r/n)^(t*n)
Pe <- function(A, r, t) A * exp(r * t)
pn <- Pn(n = n_comp, A = P, r = rate, t = 50)
pe <- Pe(A = P, r = rate, t = 50)
d <- data.frame(n_comp, pn)

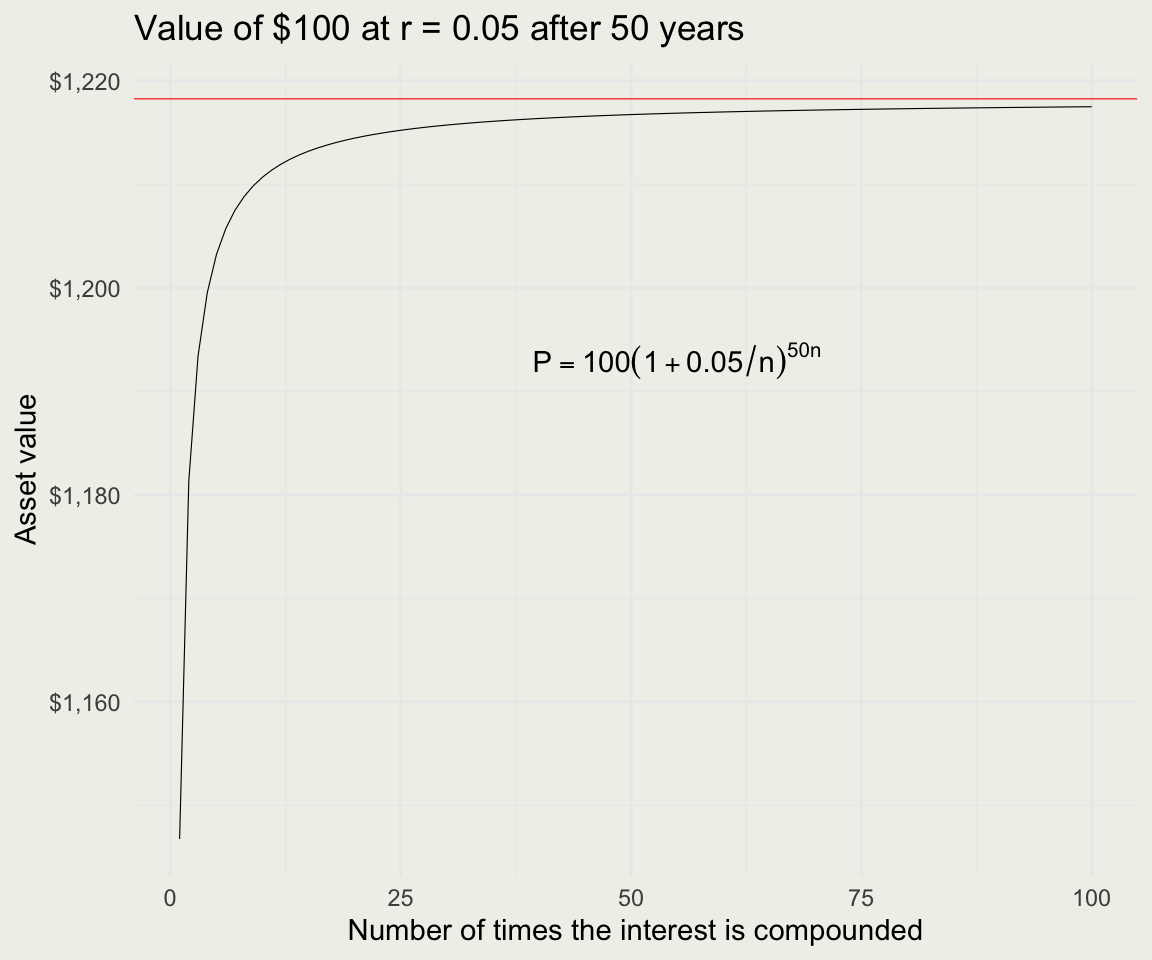

p <- ggplot(d, aes(n_comp, pn))
p + geom_line(size = 0.2) +
geom_hline(yintercept = pe, color = 'red', size = 0.2) +
xlab("Number of times the interest is compounded") +
ylab("Value of an asset") +
ggtitle("Value of $100 at r = 0.05 after 50 years")

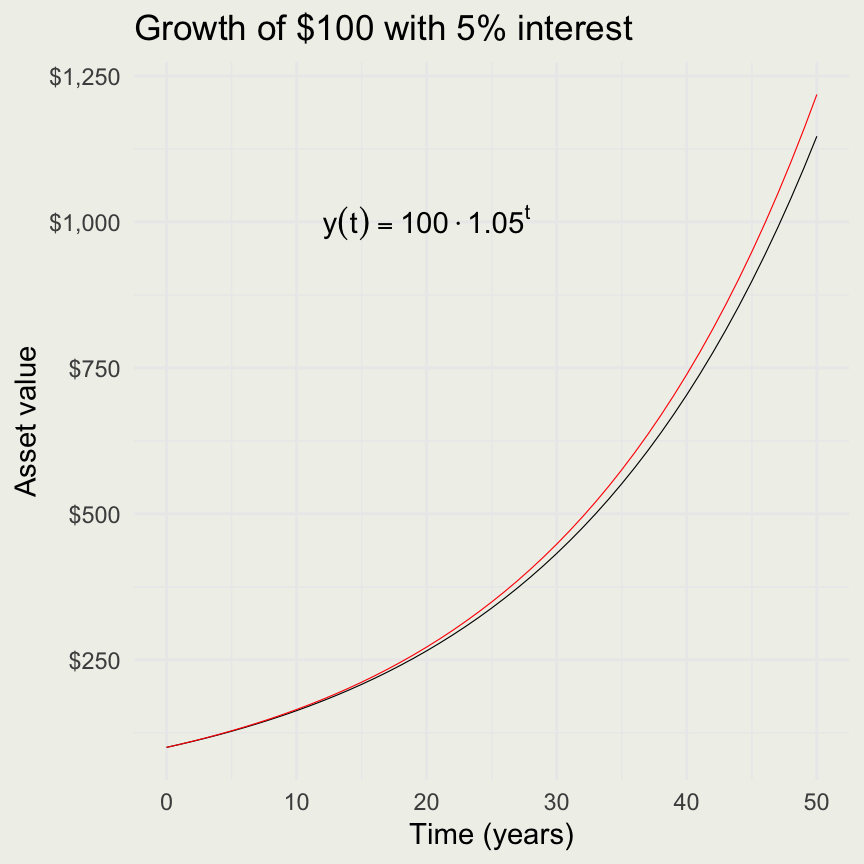

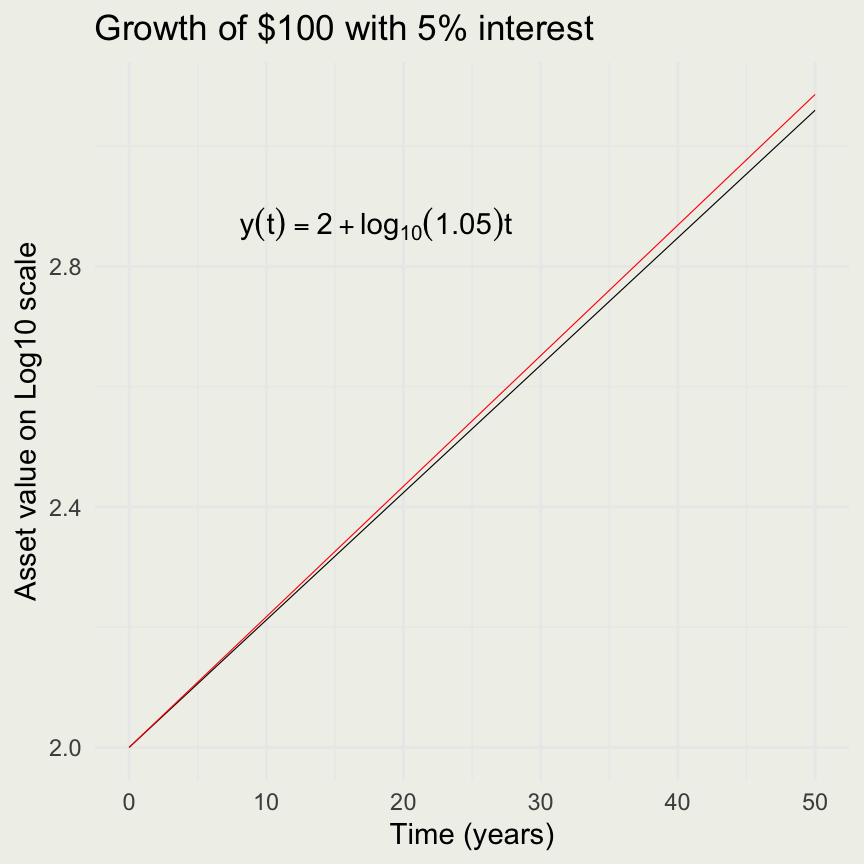

The Number \(e\)

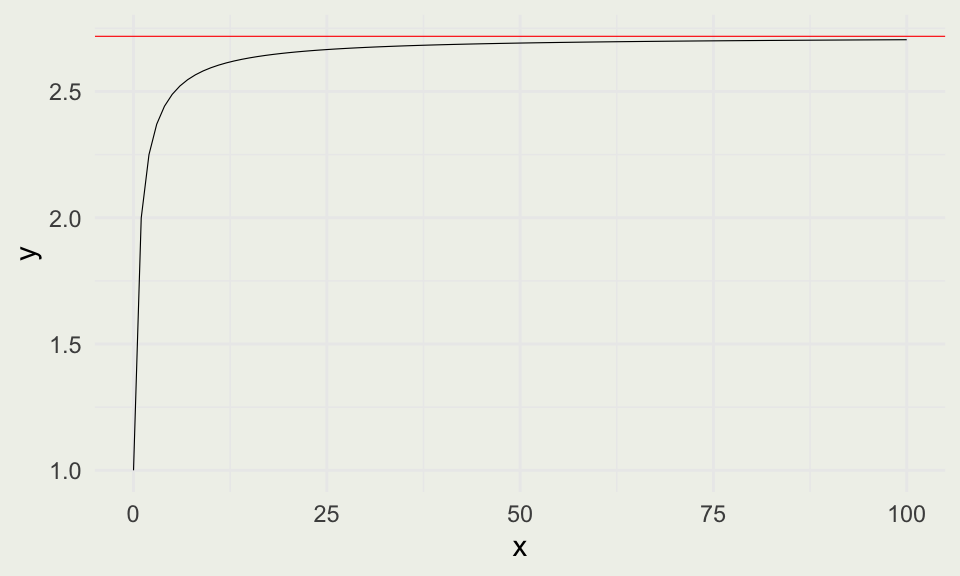

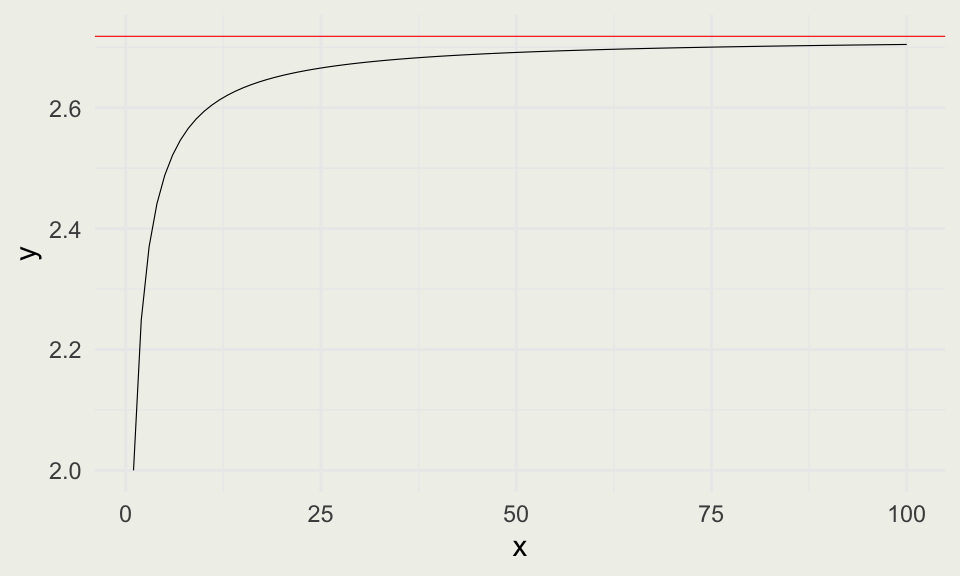

- We can compute the value of \(\left ( 1 + \frac{1}{m} \right)^m\) as m increases.
- The number that this limit approaches is called \(e\).
\[ P = \lim_{ m \to \infty}A \left ( 1 + \frac{1}{m} \right)^{m(rt)} = A e^{rt} \]
Limits
The idea of the limit is to evaluate what the function approaches as we increase or decrease the inputs.

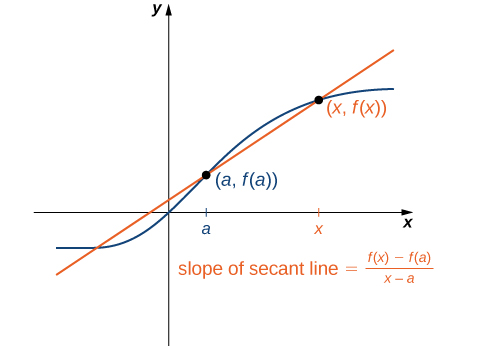

This demo shows what happens to the secant line as it approaches the tangent.

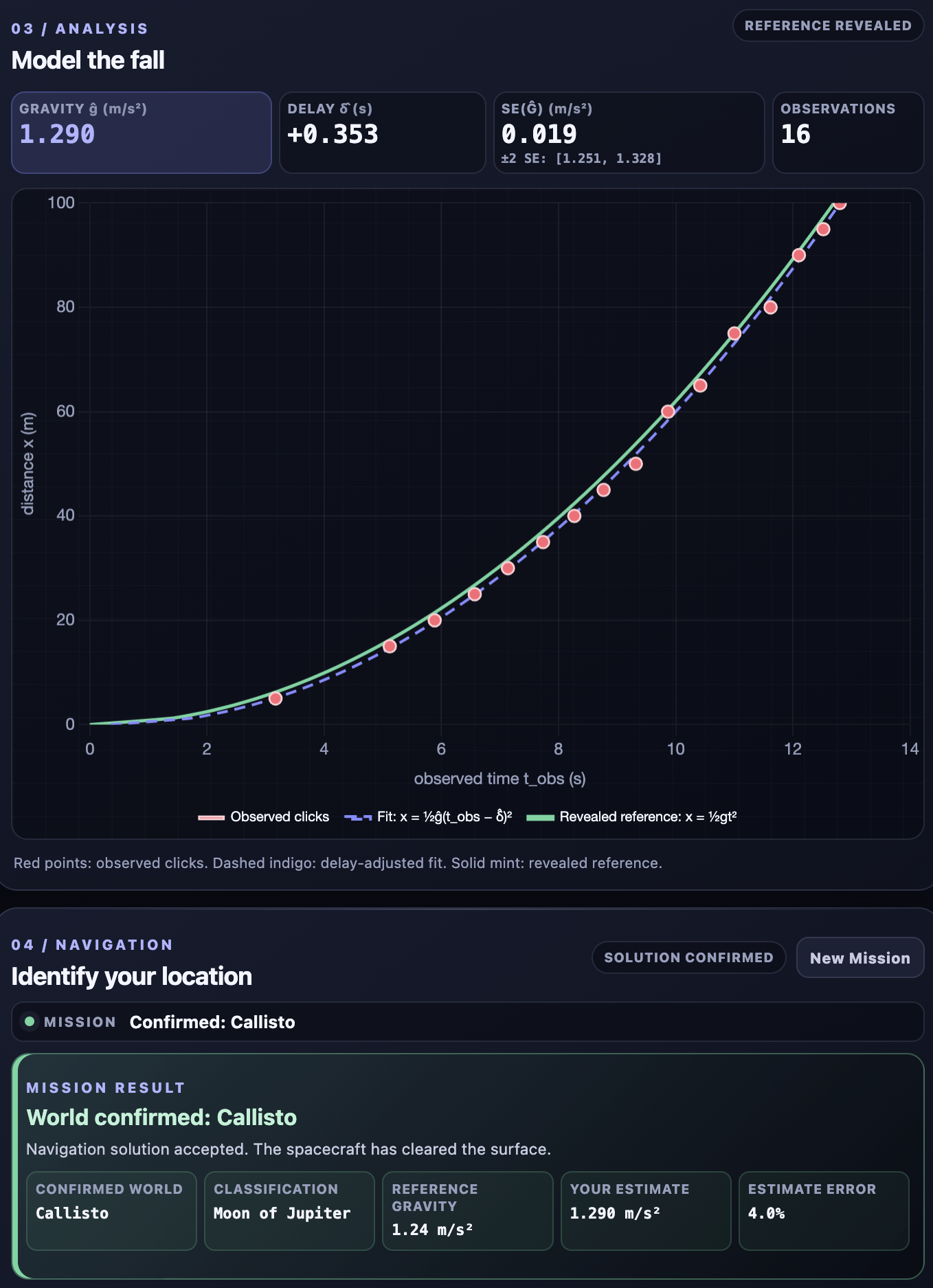

Example: Motion in a Straight Line

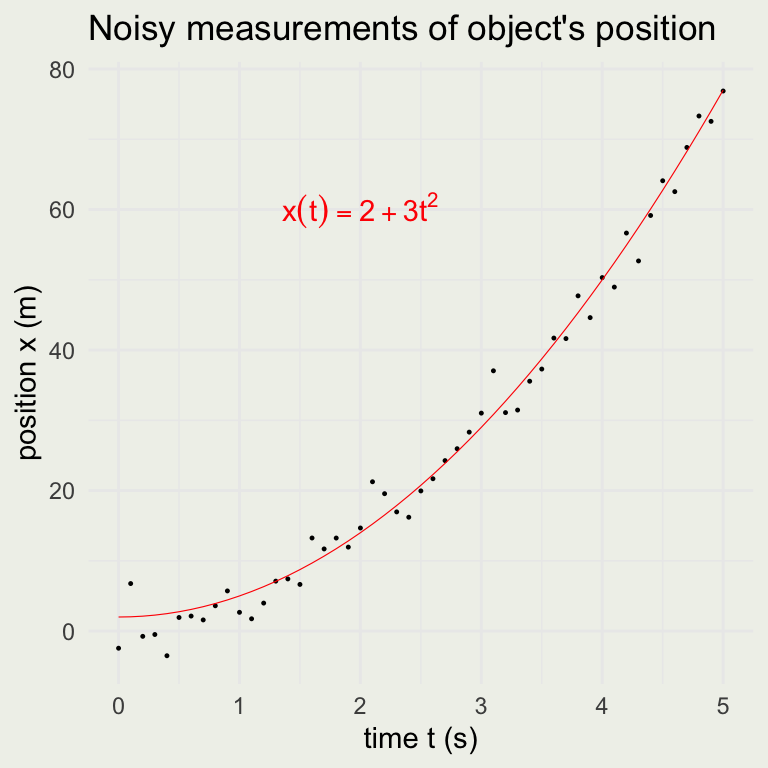

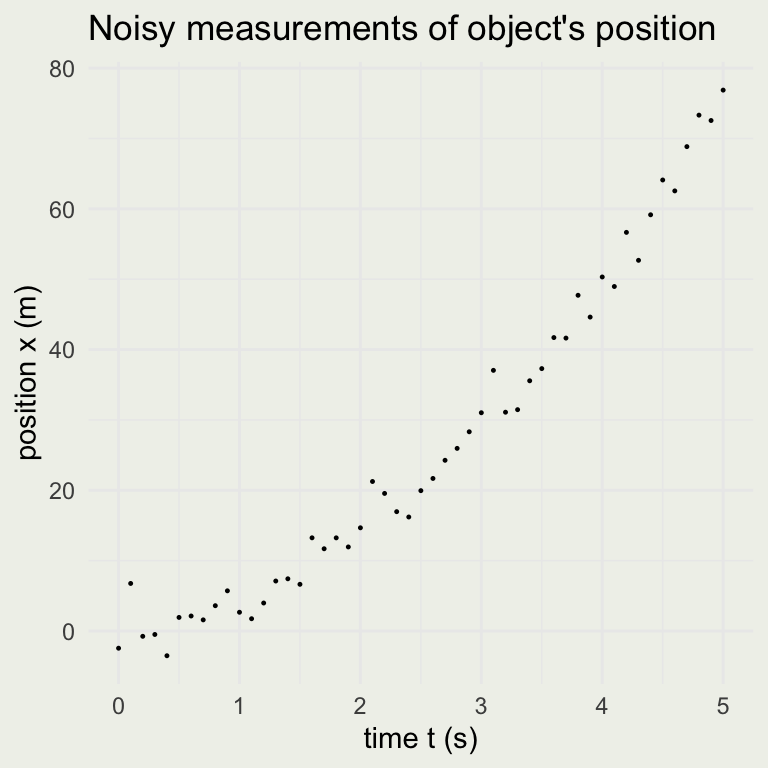

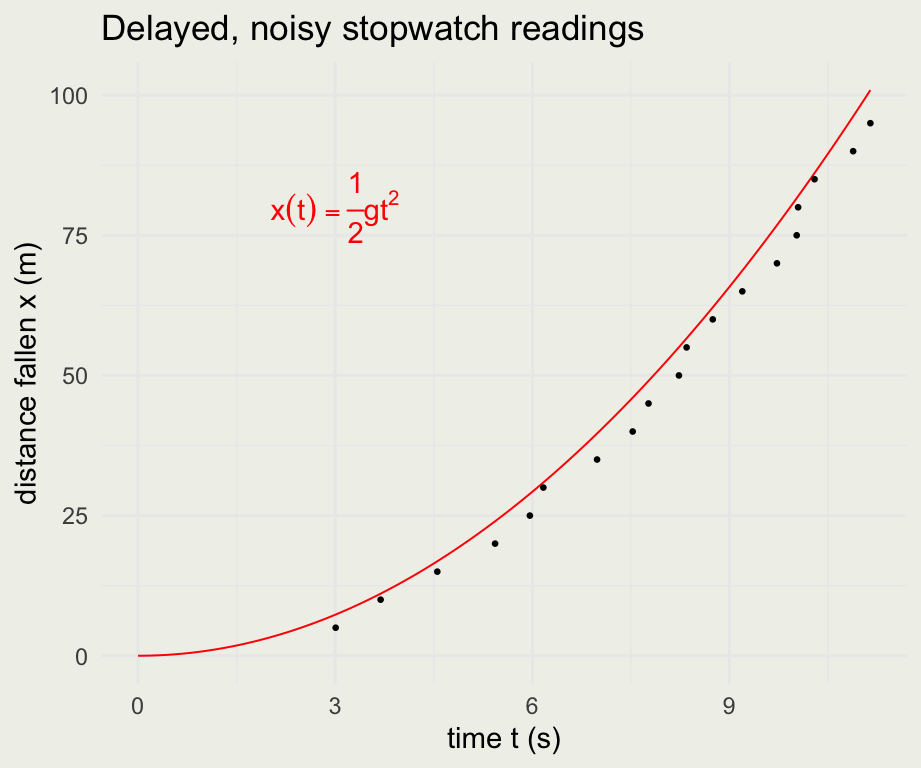

Suppose you have an experiment where you can measure the position of an object moving in a straight line every \(1/10\) of a second for 5 seconds. When you look at the graph of time versus position, it looks like this:
You guess that the function is quadratic in \(t\). If \(x\) is measured in meters, and \(t\) is in seconds, then \(a\) must have units of \(m\) and \(b\) must have units \(m/s^2\).
\[ x(t) = a + bt^2 \]
The statistical inference problem is to find plausible values of \(a\) and \(b\), given our noisy measurements and the assumption that the position function is quadratic. We will come back to how to do it later, but for now, assume that the most likely values were found to be \(a = 2\) and \(b = 3\).

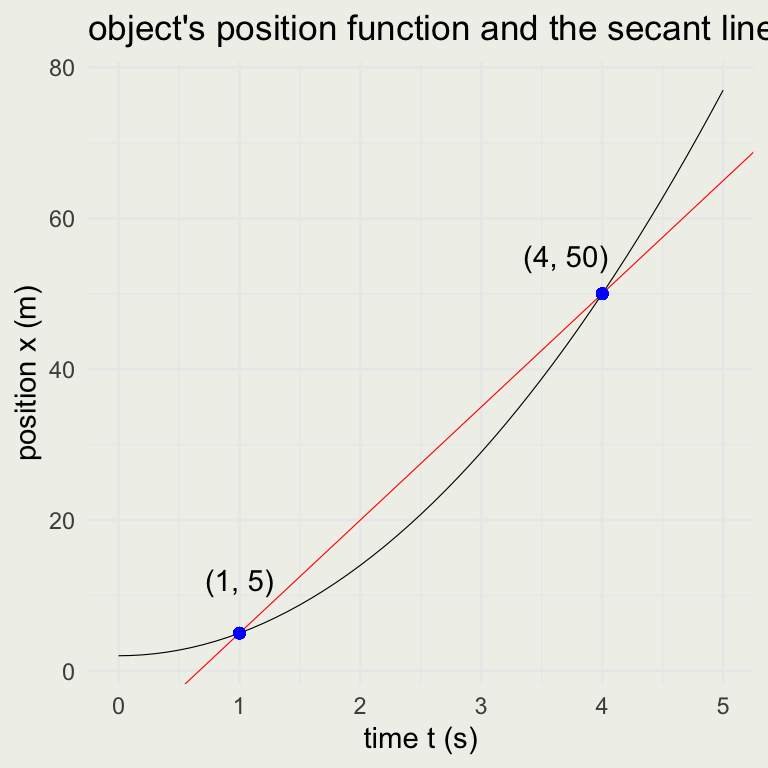

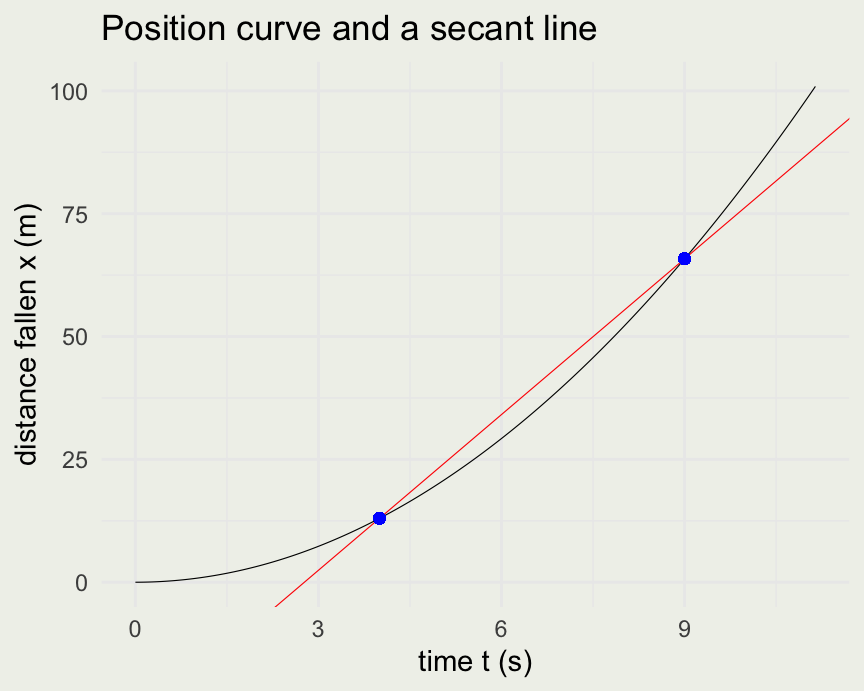

We can now ask, what was the average velocity between \(1\) and \(4\) seconds? This is the same as the slope of the secant line:
\[ \bar{v} = \frac{\text{displacment} (m)}{\text{elapsed time} (s)} = \frac{\Delta x}{\Delta t} = \frac{x(4) - x(1)}{4-1} = \frac{50-5}{3} = 15 \text{ m/s} = 54 \text{ km/h} \]
Since we know that this is a line of the form \(x(t) = a + 15t\), that goes through the point \((t_1, x_1) = (1, 5)\), \(5 = a + 15\cdot1\) or \(a = -10\). The equation of the secant line is, therefore:
\[ x(t) = -10 + 15t \]
p <- ggplot(data.frame(t, x), aes(t, x))
p + geom_line(size = 0.2) +
geom_abline(slope = 15, intercept = -10, size = 0.2, color = 'red') +
geom_point(x = 1, y = 5, color = 'blue') +
geom_point(x = 4, y = 50, color = 'blue') +
xlab("time t (s)") + ylab("position x (m)") +
annotate("text", 3.7, 55, label = "(4, 50)") +
annotate("text", 1, 12, label = "(1, 5)") +
ggtitle("object's position function and the secant line")
What if we wanted to know the speedometer reading at \(4\) seconds? In other words, we want to know the speed at that instant. This is where the limit comes in.
\[ v = \lim_{\Delta t \to 0} \frac{\Delta x}{\Delta t} = \frac{dx}{dt} \]
The Derivative
- How do we compute this limit, which we wrote as \(dx/dt\)?

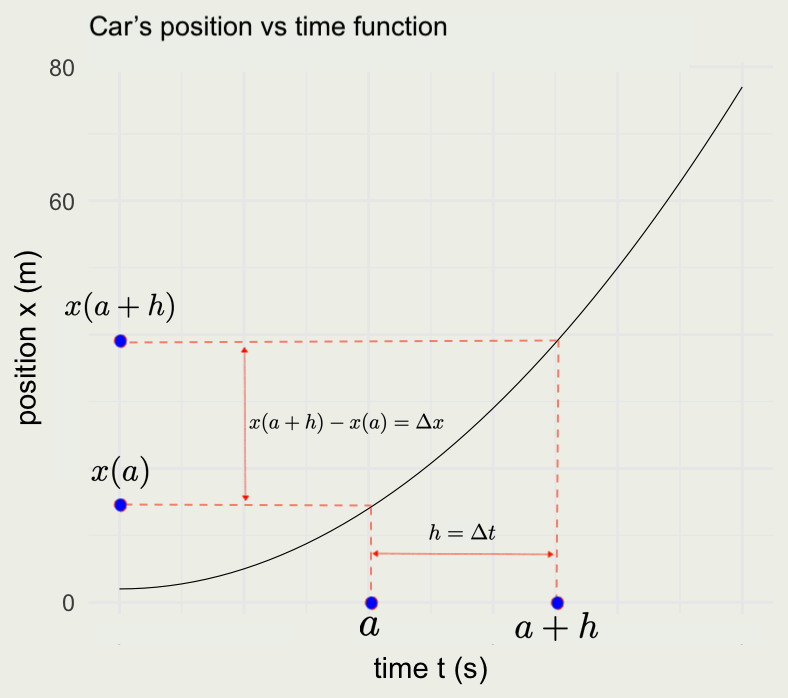

- We re-write the secant or average velocity equation in the following way:
\[ \begin{eqnarray} \bar v & = & \frac{x(a + h) - x(a)}{a + h - a} = \frac{x(a + h) - x(a)}{h} \\ v & = & \lim_{\Delta h \to 0} \frac{x(a + h) - x(a)}{h} \\ \end{eqnarray} \]
Approximating Derivatives

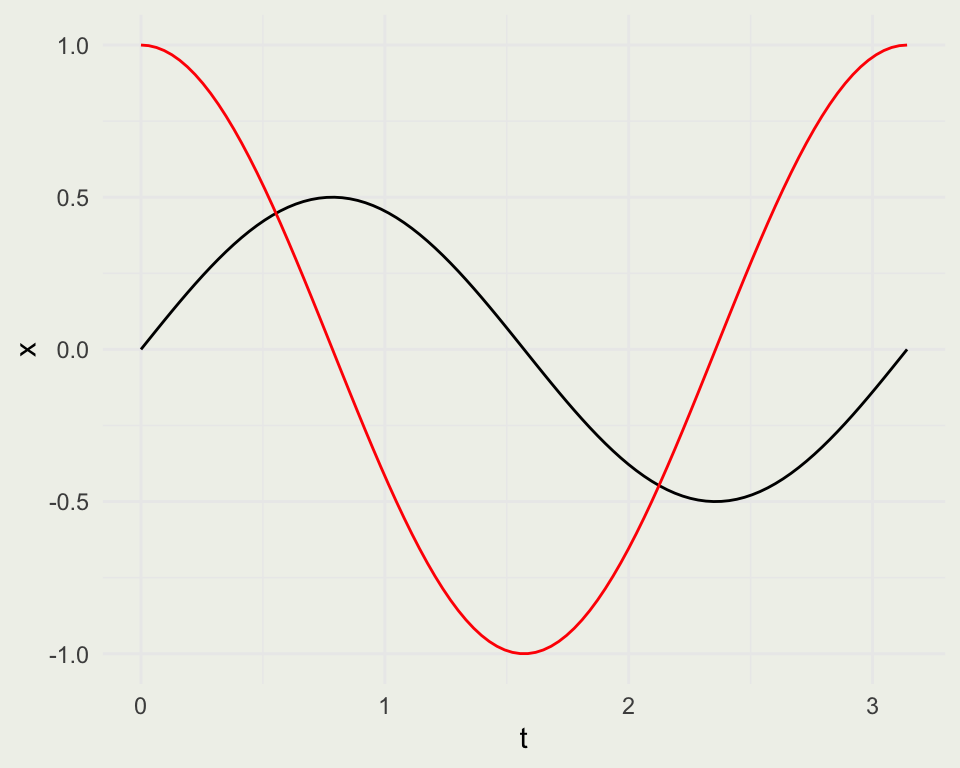

library(ggplot2)
library(dplyr)
n <- 100
t <- seq(0, pi, length = n)
x <- sin(t) * cos(t)
dxdt <- cos(t)^2 - sin(t)^2
d <- tibble(t, x, dxdt)
p <- ggplot(d, aes(t, x))
p + geom_line() + geom_line(aes(y = dxdt), col = 'red')
# approximate the derivative
s <- pi / (n - 1) # choose the same step s as the increment in the t sequence
all.equal(s, diff(t)[1]) # check that the above statement is true[1] TRUEappr_dxdt <- diff(x)/s # derivative ≈ rise / run
d <- d %>%
mutate(appr_dxdt = c(NA, appr_dxdt))

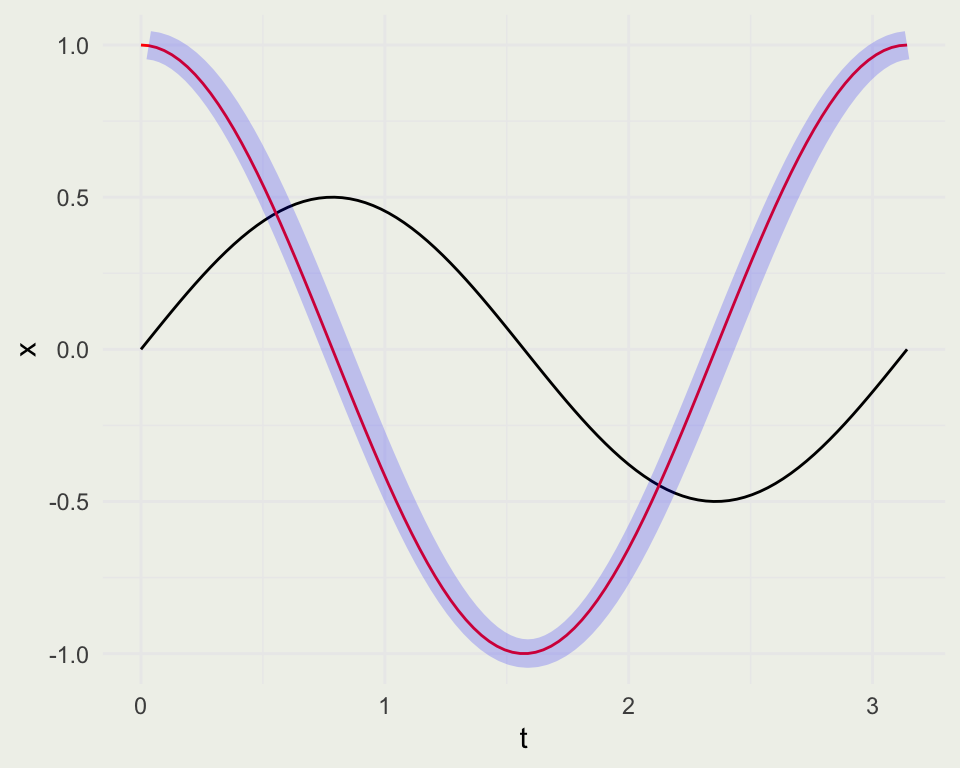

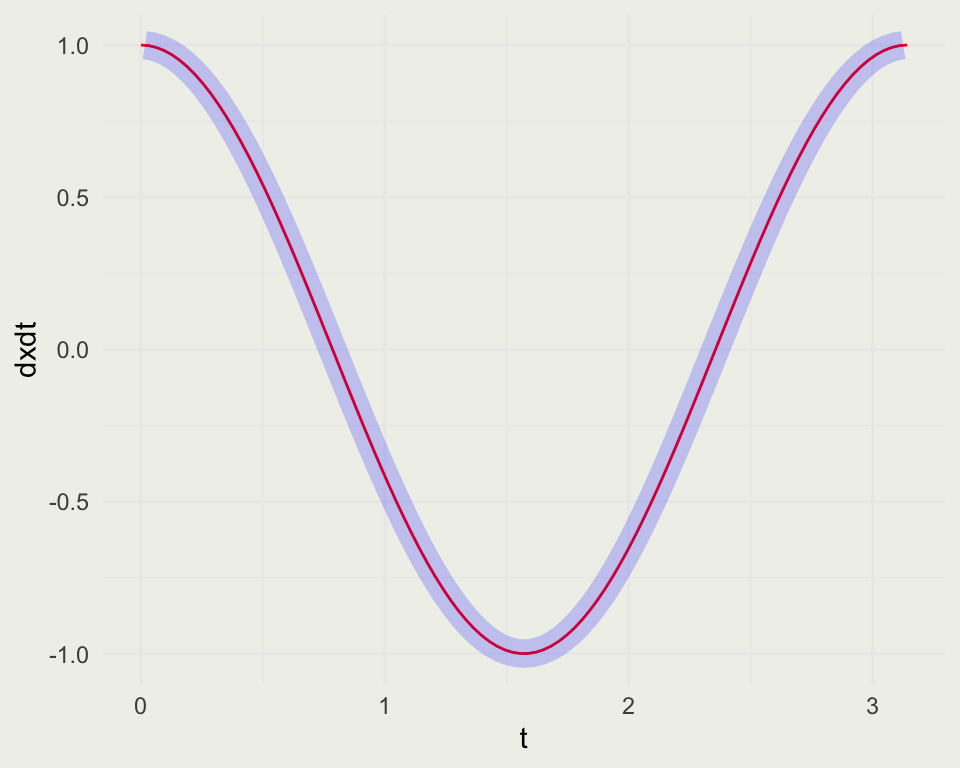

p <- ggplot(d, aes(t, x))
p + geom_line() + geom_line(aes(y = dxdt), col = 'red') +
geom_line(aes(y = appr_dxdt), col = 'blue', size = 5, alpha = 1/5)
